Net2phone how to provision Grandstream WIFI cordless phone
In the guide below, we will show you how to provision the Grandstream WIFI cordless phone. Please note that this guide is specifically tailored for the WP810 module; however, the process is similar for all Grandstream WIFI cordless phones.

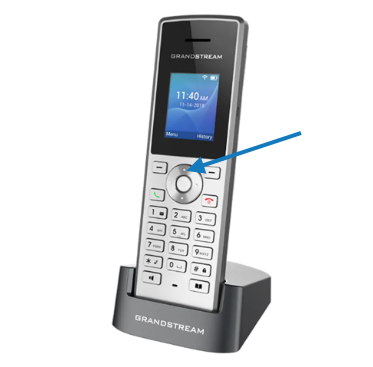

1. You will need to access the IP from your handset, You can find the IP address of WP810 by pressing the UP-arrow button from WP810.
This procedure will only be effective if you are using a PC that is connected to the same network as the device you are attempting to provision.

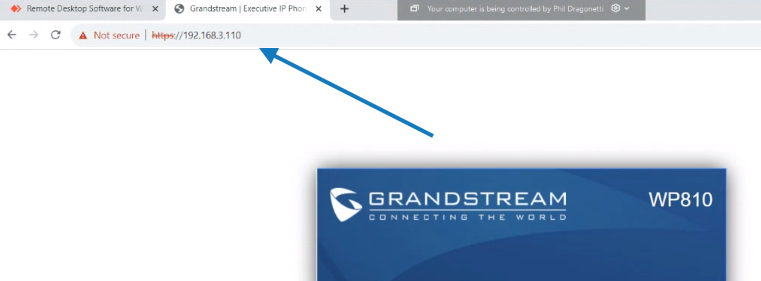

2. Open a web browser and enter https:// then the IP address you got from the phone.
Example: https://12.09.32.117

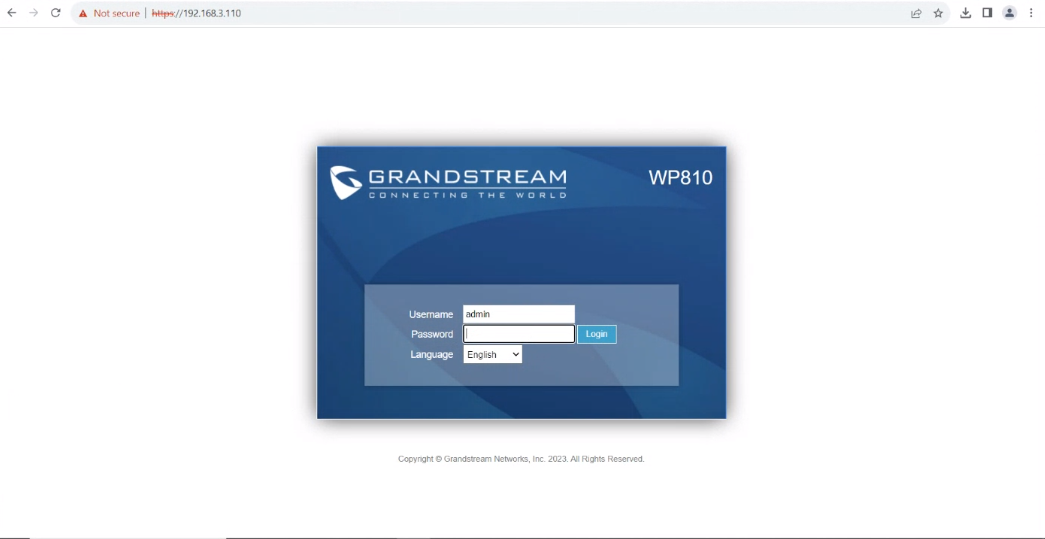

3. Enter the username and password to log in to the web GUI.
The factory default administrator username is “admin”, and the random password can be found on the sticker at the back of the unit. (You may need to take off the back cover and the better to retrieve the password)

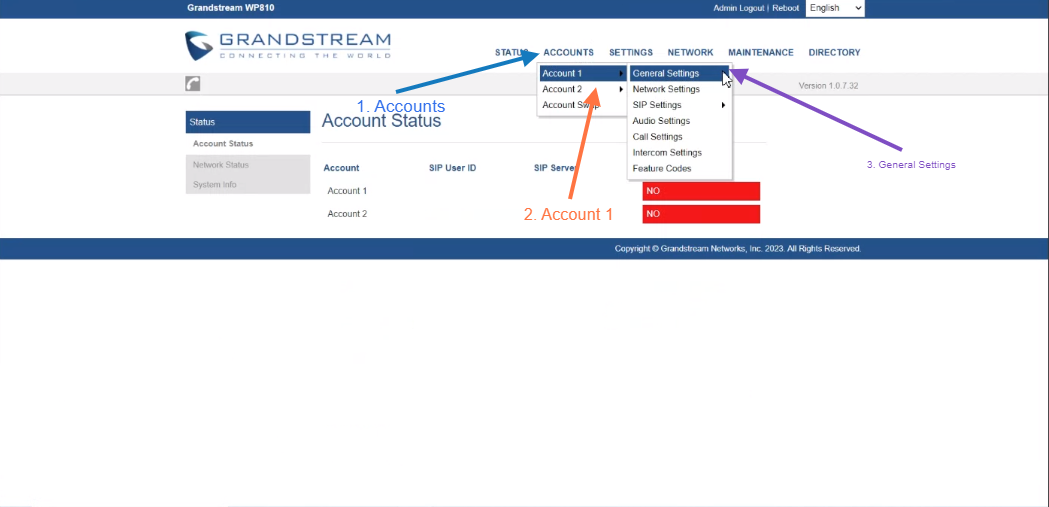

4. Click on, Account Account 1 / General Setting
To proceed with this task, you will require the SIP credentials. If you do not already possess them, kindly access the Net2phone portal. For a detailed, step-by-step guide on how to retrieve this information, please click on the following link: CLICK HERE

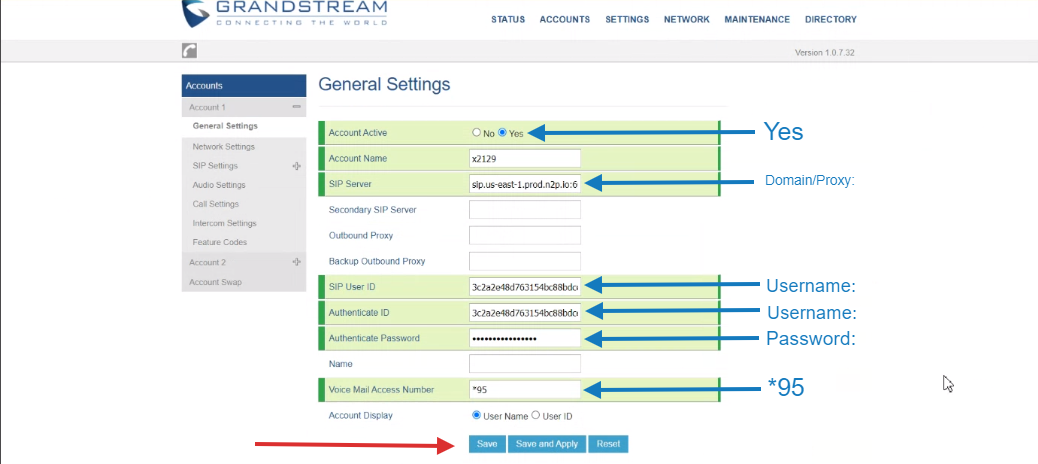

5. Enter the SIP setting as presented below.
Account Name: Enter the name you would like to be presented on the actual device.SIP Server: Enter the Domain/ProxySIP User ID: Enter the UsernameAuthenticate ID: Enter the Username againAuthenticate: Enter the PasswordVoice Mail Access Number: Enter *95Account Active: Yes

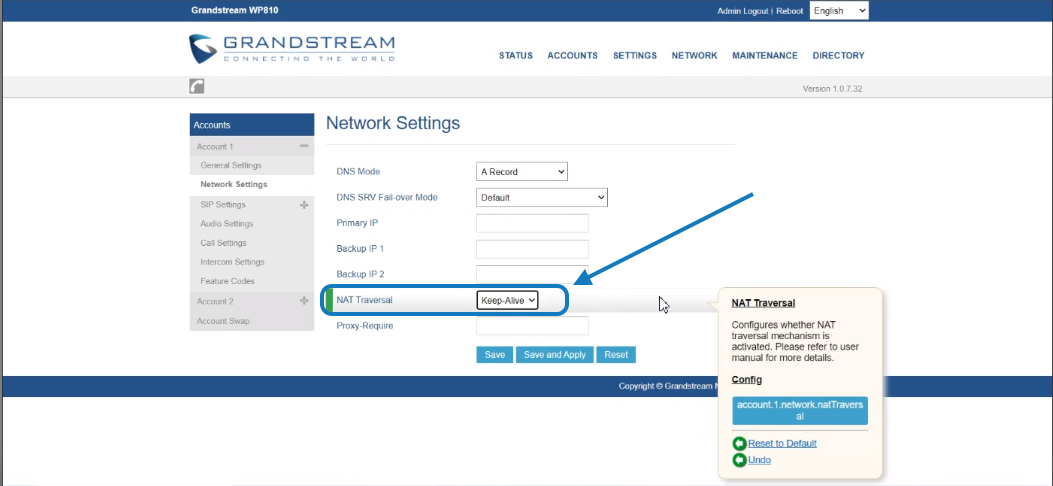

6. Navigate to Network Settings and NAT Traversal is set to "Keep-Alive"

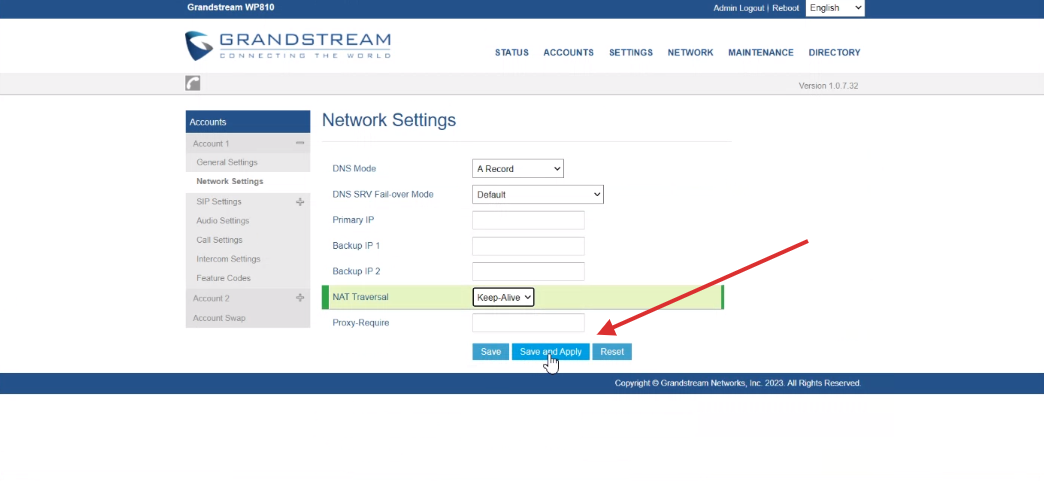

7. Click Save and Apply

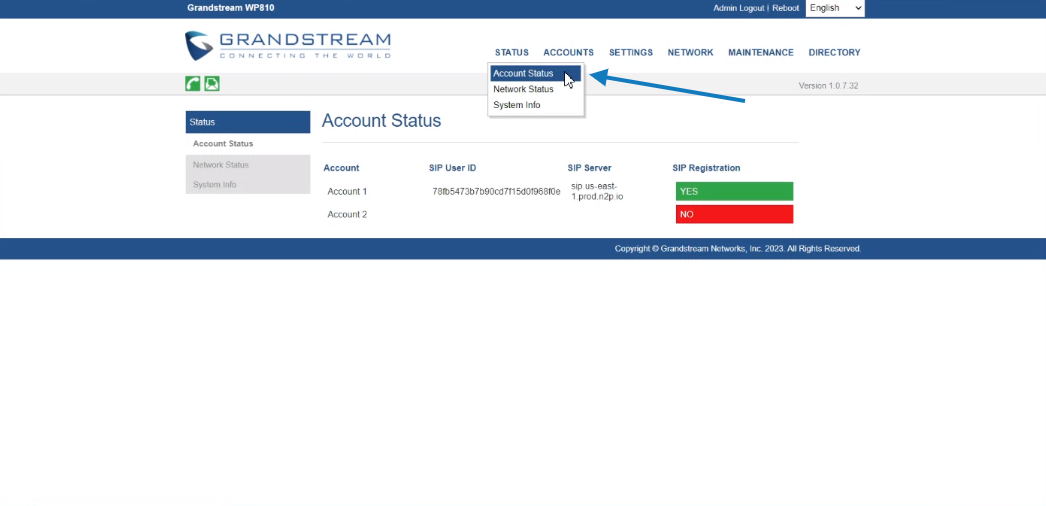

8. Navigate to Account Status and if all is set properly the status should be green.
