How to connect the Algo 8301 to a Valcom V-2003a Amplifier

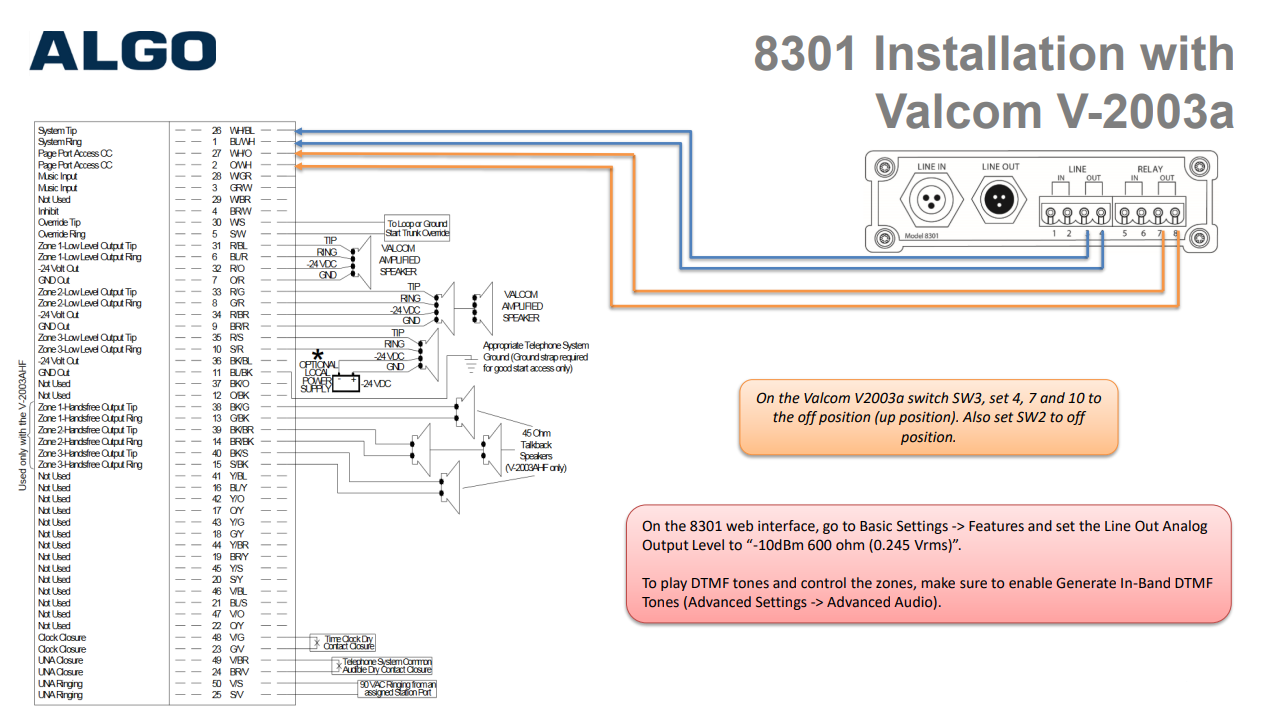

The diagram below illustrates the step-by-step process of connecting an Algo 8310 to a Valcom V-2003a in order to facilitate overhead paging via a phone.

​
