How to connect the Algo 8301 to a Valcom V-2001a Amplifier

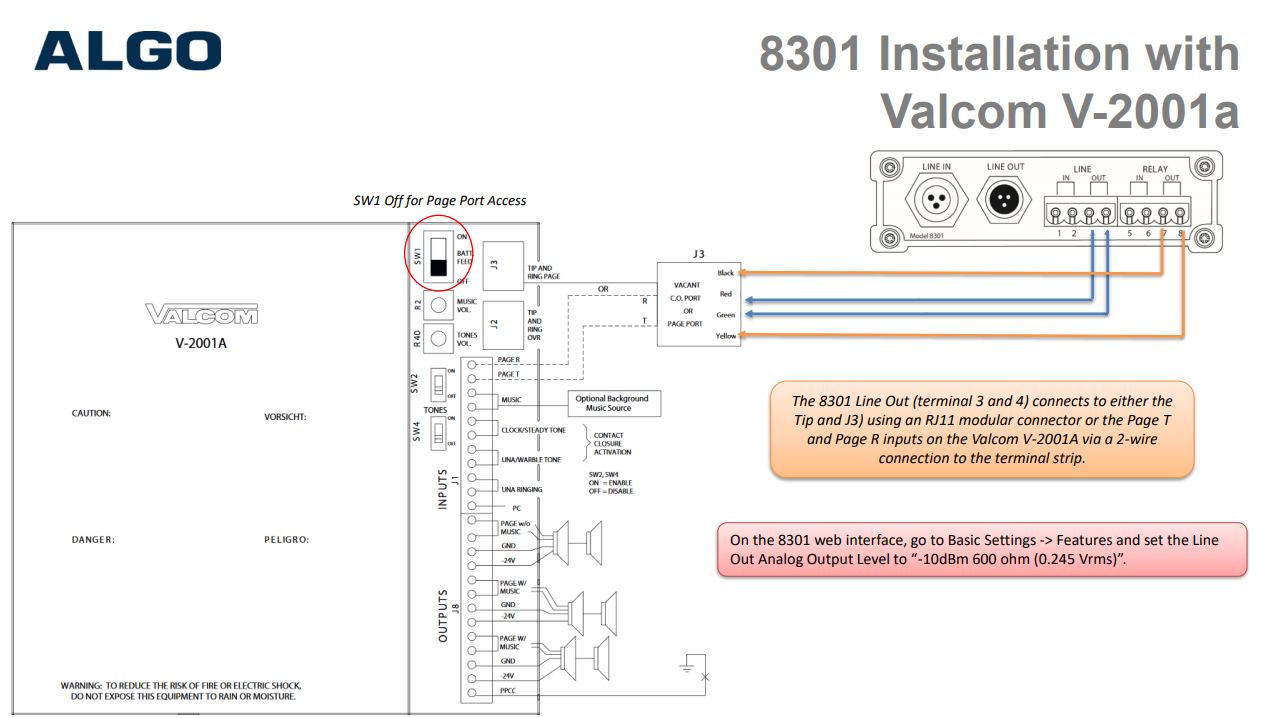

The diagram below illustrates the step-by-step process of connecting an Algo 8310 to a  Valcom V-2001a in order to facilitate overhead paging via a phone.
