How to connect the Algo 8301 to a Bogan TPU-35/60/100/25 Amplifier

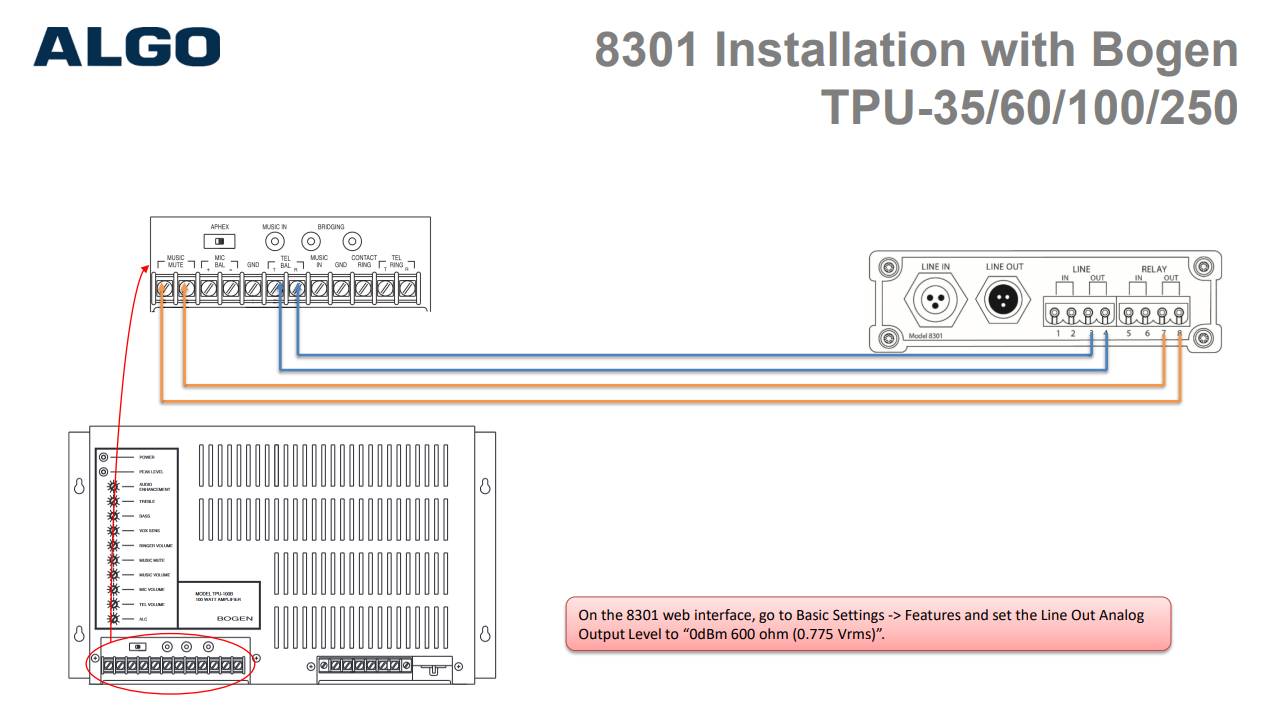

The diagram below illustrates the step-by-step process of connecting an Algo 8310 to a Bogen amplifier (TPU-35/60/100/25) in order to facilitate overhead paging via a phone.
